AUTO BODY COLLISION REPAIR MACHINES (ANONA)
Any damages resulting from small scratches to high-speed vehicle crashes; we offer efficient auto body collision repair machine to align up the body of the car. No matter what’s the impact type or what the style of damaging vehicle is. Our auto body collision repair machine is ready to fix the damage and equalize the line and length of the auto body.

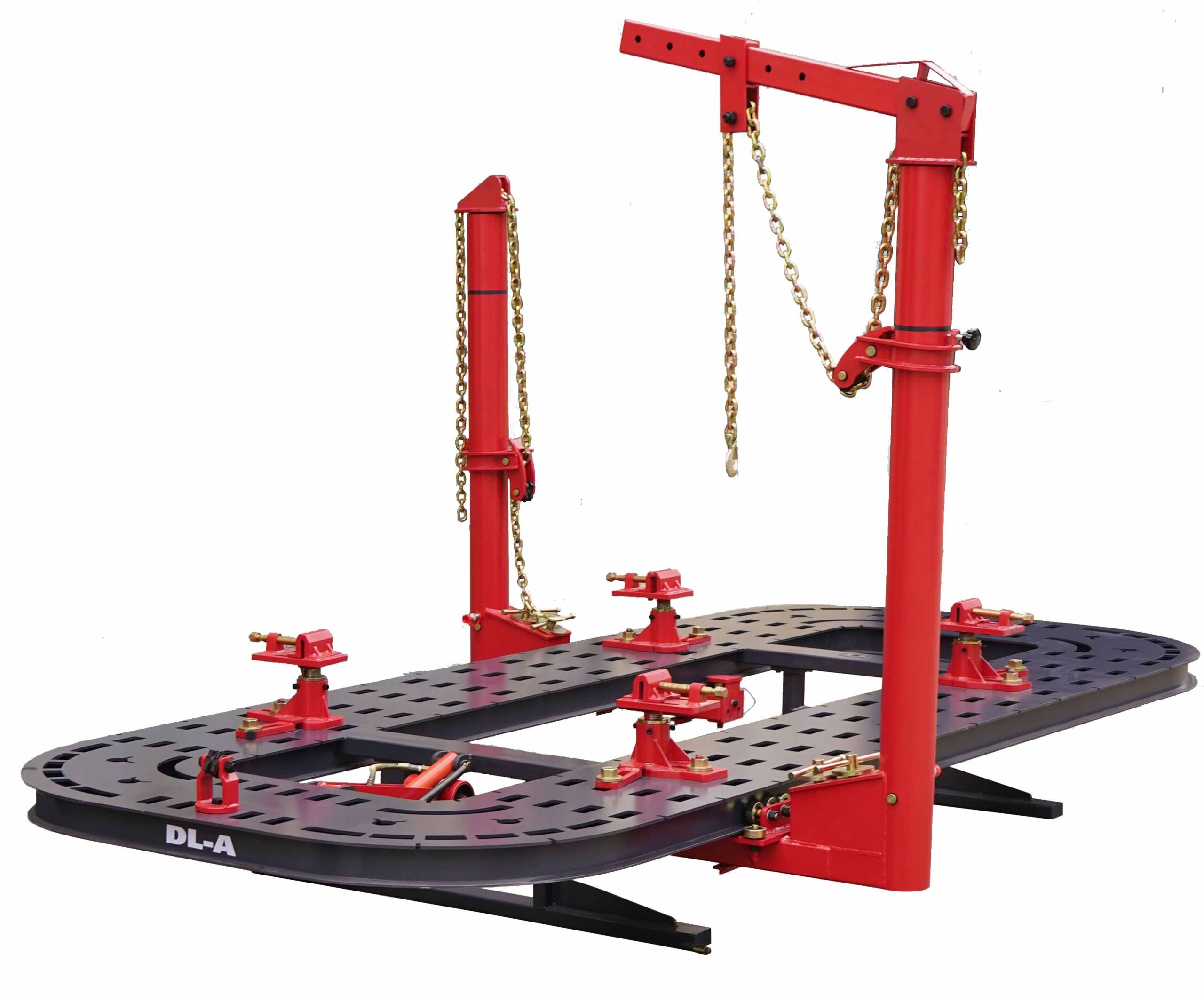

Sidewise Tilt auto body collision repair bench
- It has equipped with the platform and lateral recesses so that four clamps of a standard body have mounted in any spot on the platform.
- This has two pulling towers which are driven hydraulically. It contains the pulling power of 10 tons to move an object around platform easily. In this way, it enables to apply pulling power around anywhere the auto body.
- If one wants to pinpoint the height of pulling strength and point of application. He or she can quickly change the collar position to pulley.

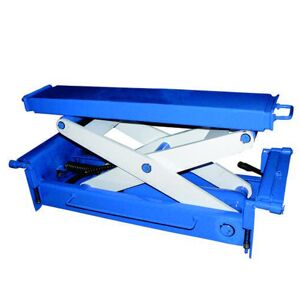

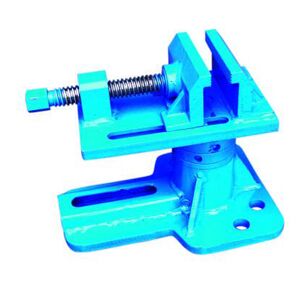

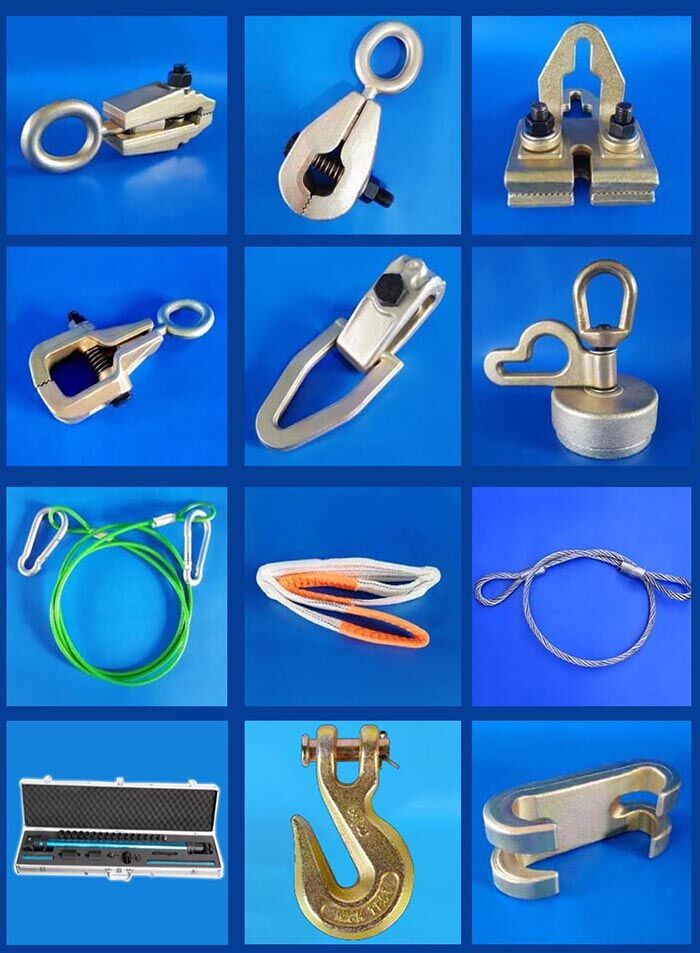

Options
Technical Data
| Model No. | DL-A | DL-B |
| Material | Manganese Steel | |
| Lifting Way | Sidewise Tilting | Whole-Body Tilting |
| Platform Length | 5200 mm | |
| Platform Width | 2100 mm | |
| Platform Height | 520 mm | 300 ~ 1000 mm |
| Tower Pulling Capacity | 2 x 10 tons | |
| Hydraulic Power | 70 MPa | |
| Radius of Tower | 360° | |
| Lifting Capacity | 3500 kg | 3000 kg |
| Gross Weight | 1950 kg | |

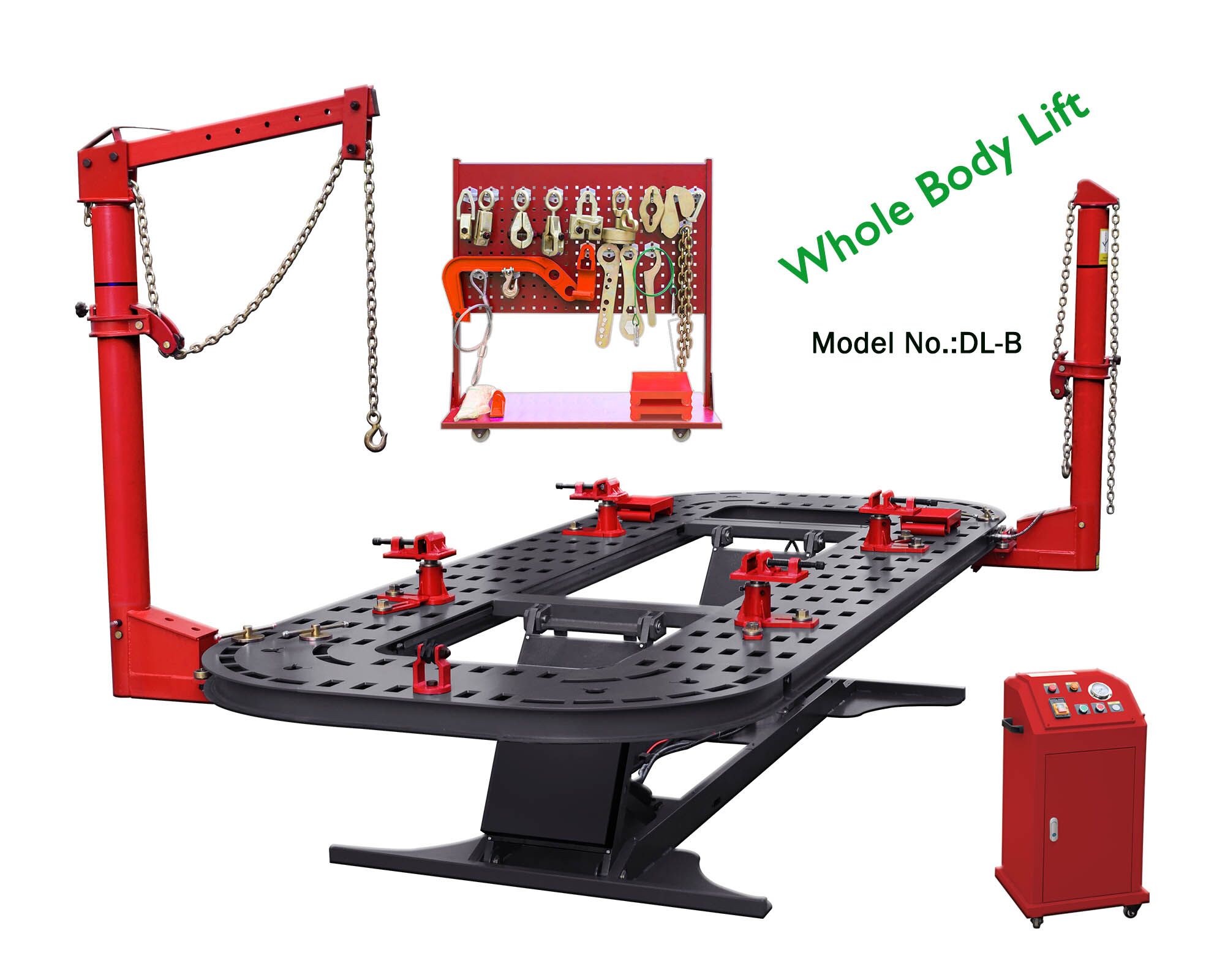

Whole Body Tilt
- Its lifting capacity is 3500 kg with tilt hydraulic platform operation.
- 360 degree is the pulling capability.
- 210 ton of round drag tower within a head of a building tower.
- The quick disconnect capability of hydraulic fitting as well as hose connection.
- Enables the drive-on potential over the ramp.
- Clamp kit and tools are provided.

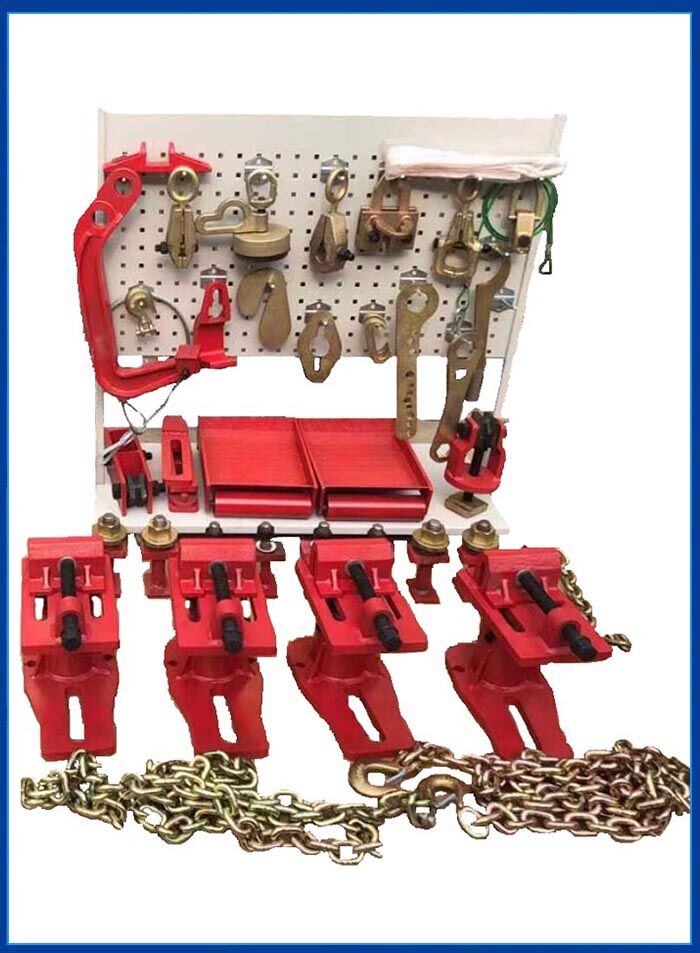

Standard Shipment for DL-A and DL-B
| PART NAME | DL-A | DL-B |
|---|---|---|
| Platform | 1 | 1 |
| Drive-in Ramp | 2 | 2 |
| Tower for pulling car roof | 1 | 1 |
| Normal Tower | 1 | 1 |
| Common Stand | 4 | / |
| Pull-Down Pulley Set | 1 | 1 |
| Semi Axle Bracket | 2 | 2 |
| Disabled Car Moving Plate | 2 | 2 |
| Air Pump Set (1600cc ) | 2 | 2 |
| Mobile Tool Trolley (with 15pcs hangers) | 1 | 1 |
| 3.5m Chain with Hook (10T) | 2 | 2 |
| 1m Connection Chain with Hook (10T) | 1 | 1 |
| Flat-Bit Clamp (5T) | 1 | 1 |
| Two-Way Flat-Bit Clamp (5T) | 1 | 1 |
| Box Clamp (3T) | 1 | 1 |
| Right-Angel Clamp (5T) | 1 | 1 |
| 2’’ Scissor Clamp (3T) | 1 | 1 |
| Deep Hook (8T) | 1 | 1 |
| Chain Linker (8T) | 1 | 1 |
| Shock Absorber Set (3T) | 1 | 1 |
| Steel Wire | 1 | 1 |
| Safety Rape | 1 | 1 |
| Power Strip | 1 | 1 |
| Manual Measure Scale | 1 | 1 |
| Control Box | / | 1 |

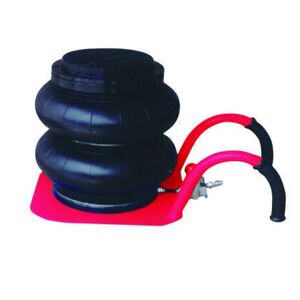

| Ball Pneumatic Jack | / | 1 |

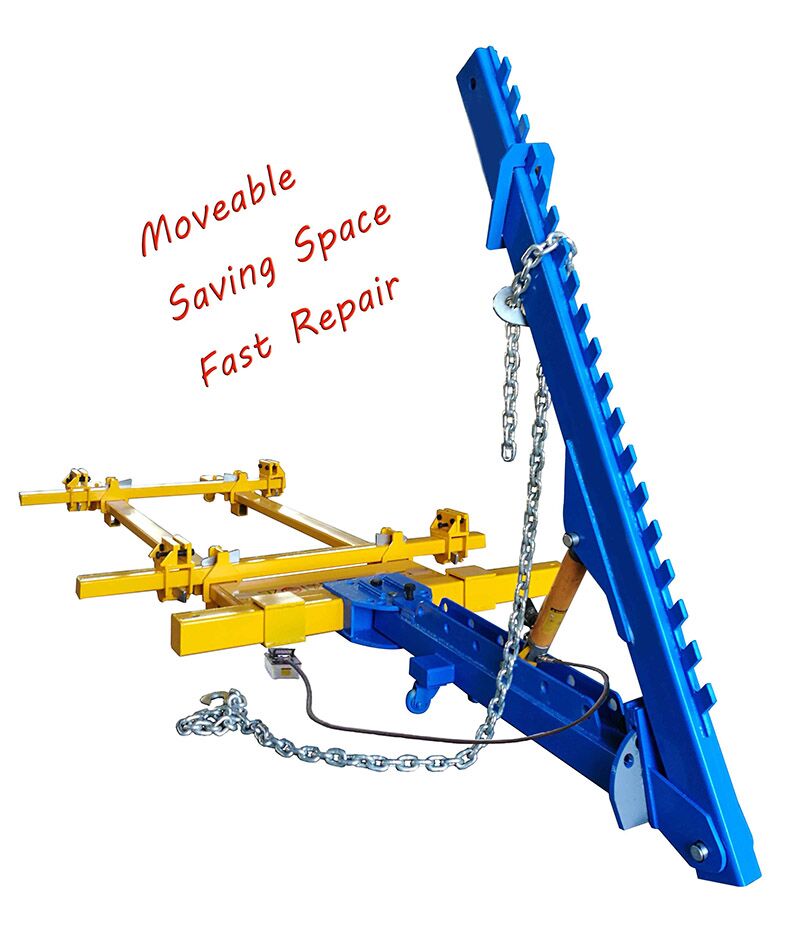

Auto Collision Fast Repair Machines
| MODEL NO. | F10 |
|---|---|
| Platform Length | 540cm |
| Max. Length with Tower | 684cm |
| Width with Tower | 312cm |
| Fixed Height | 35cm |
| Max. Loading Capacity | 3500kg |
| Max. Pulling Capacity | 10T |
| Pulling Tower Height | 185cm |
| Shipping Weight | 350kg |
| Power Requirement | Air 0.8Mpa |

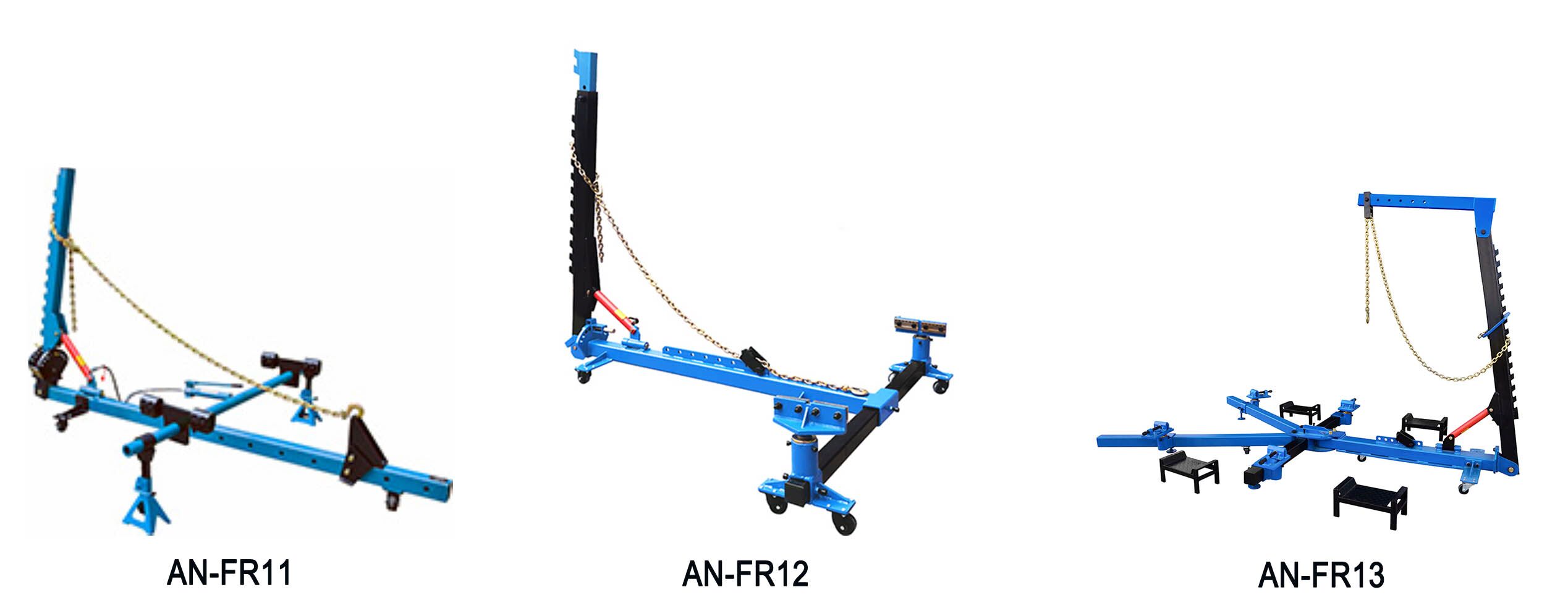

| MODEL NO. | AN-FR11 | AN-FR12 | AN-FR13 |
|---|---|---|---|
| Deck Length | 3000mm | 2100mm | 3650mm |
| Deck Width | 2000mm | 1900mm | 2000mm |
| Deck Height | 205mm | 205mm | 210mm |
| Tower Pulling Force | 49KN | 49KN | 98KN |
| Hydralic Pressure | 70Mpa | 70Mpa | 70Mpa |
| Air Supply | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Net/Gross Weight | 285/305kg | 320/340kg | 560kg |
| Package Size | 3080x450x450mm(LxWxH) in one package | 2300x700x400mm(LxWxH) in one package | 2250x700x490mm(LxWxH) in one package |

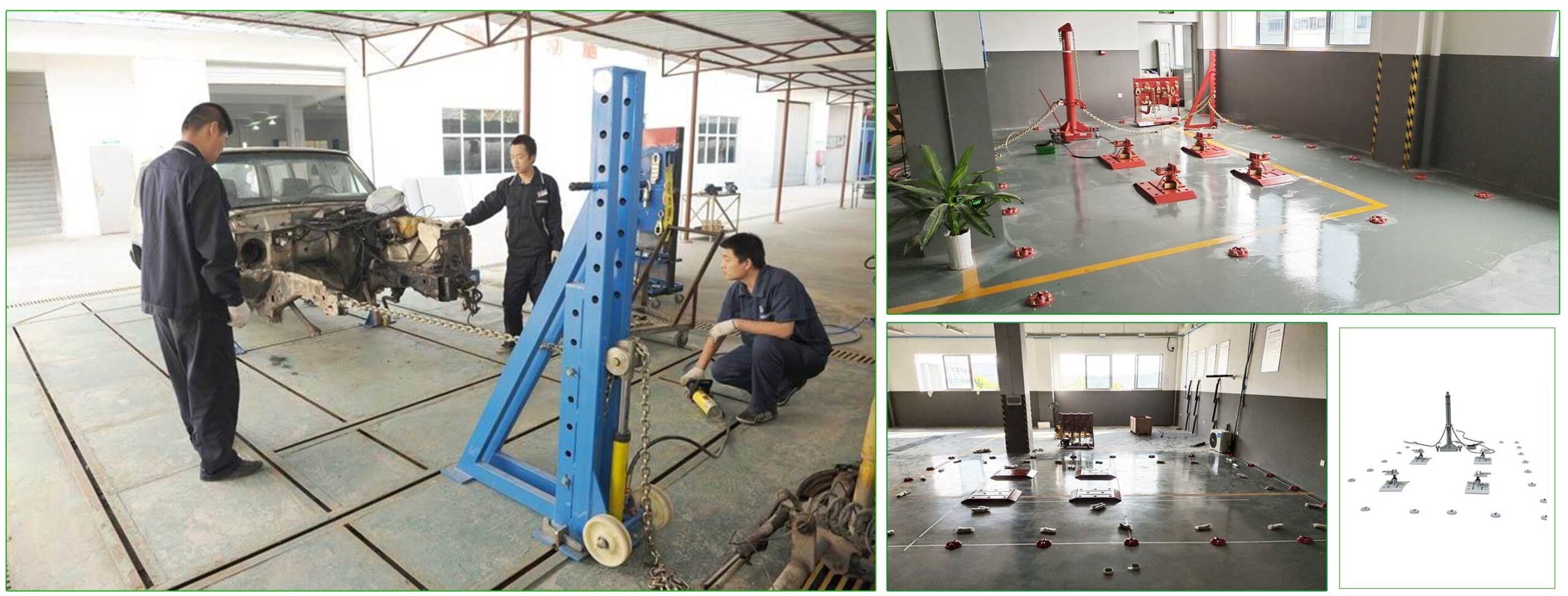

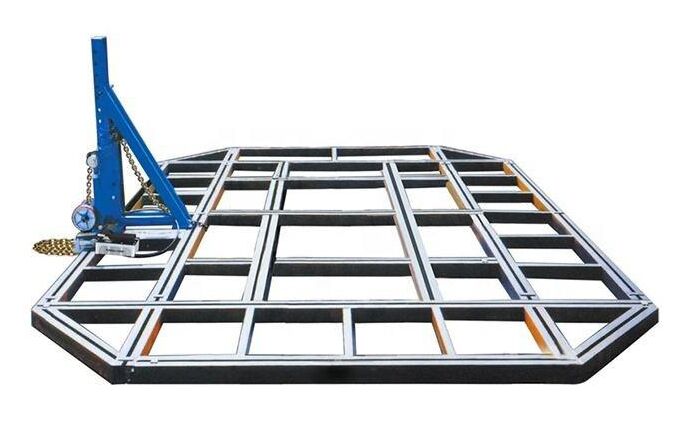

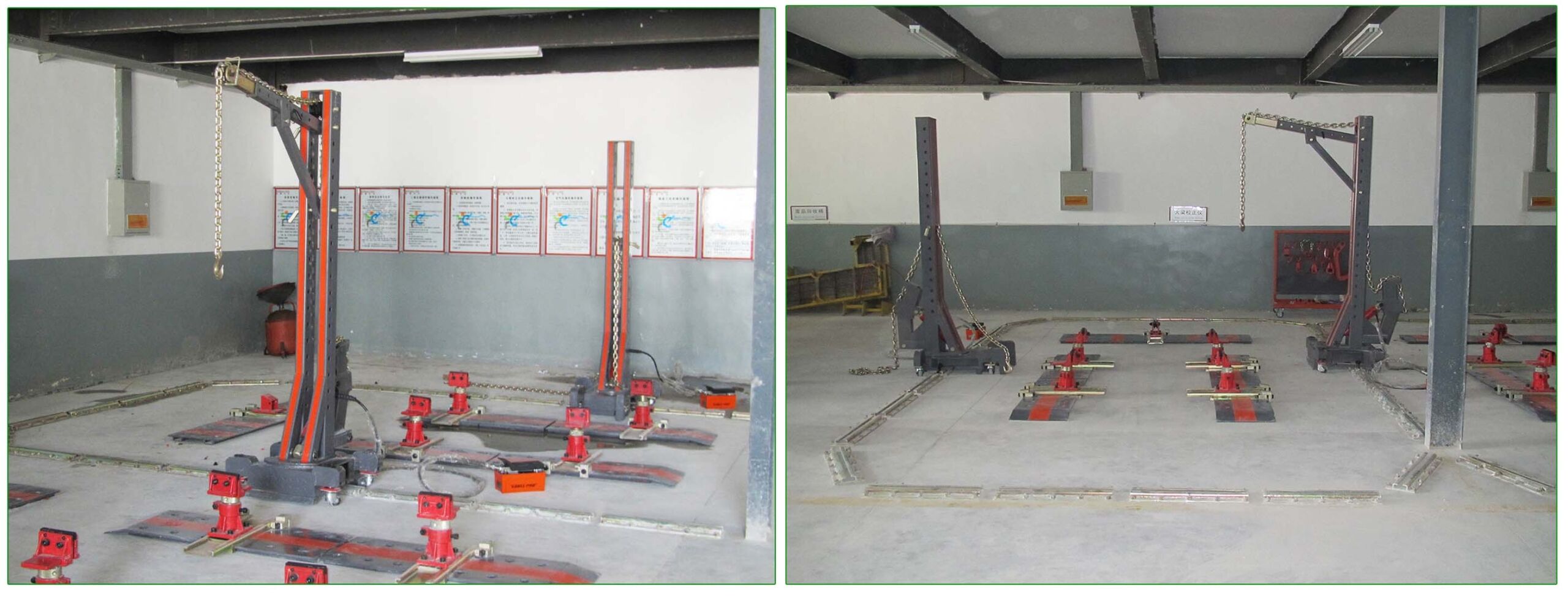

Auto Body Floor Straightening System

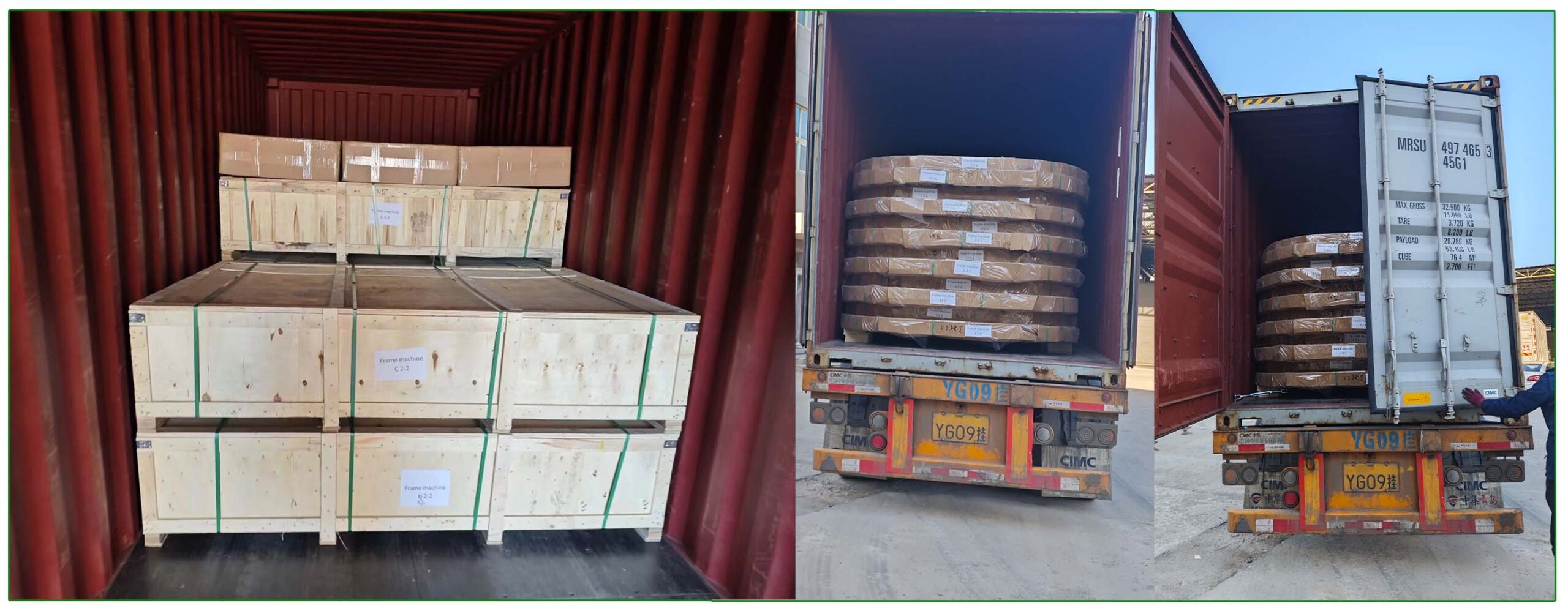

PACKAGE AND INSTALLATION
