DUSTLESS SANDER VACUUM TROLLEY
Why do we use Dustless Sander Vacuum Trolley?
1) Comparing with the traditional wet sanding process, Dustless Sander Vacuum Trolley is with larger cutting force and without the wait time for drying of the workpiece before the next process. Besides, the application of professional sanding tools also makes working efficiency different.
2) A perfectly smooth surface can be created by machine sanding of Dustless Sander Vacuum Trolley, benefiting the follow-up processes. Orange skin, bubble, and sanding marks can also be avoided under the Dry Sanding Dust Extraction System.
3) No wastewater, dust, and other contaminants, Dustless Sander Vacuum Trolley can not only create less sandpaper consumption and shortened repairing time but also raise the cleanliness of the working environment and ensure the good health of operators.

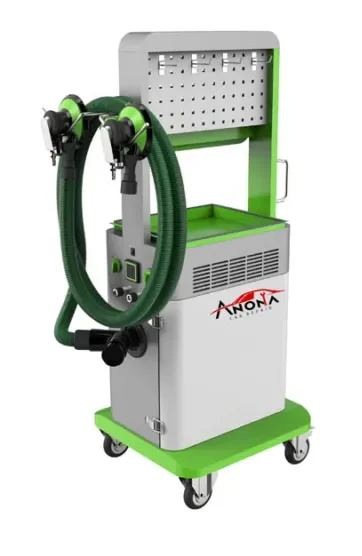

FEATURES OF AN-LY1 COMPACT DUSTLESS SANDER VACUUM TROLLEY
- Industrial-Grade Motor is equipped, ensuring strong dust absorption.
- Self-Developed Assembly Hose and Sander Quick Connecter makes sander change much easier.
- Partition Design on machine frame creates a clear sanding station with sorted sanding papers and small parts.
- 45L Dust Bag helps to extend clean cycle and reduce worker’s workload.
- High-Precision Oil-Water Separator is equipped for automatically lubricant supply, extending sanders’ service life.
TECHNICAL DATA
| Power | 1200 W |
| Wire Length | 8 M |
| Air Capacity | 3900 L/min |
| Max. Vacuum | 2400 Pa |
| Dust Holding Capacity | 45 L |
| Filtering Area | 6236 cm2 |
| Voltage | 220 – 240V, 50/60Hz |
| Machine Size | 50x50x134 cm |
| Weight | 40 kg |

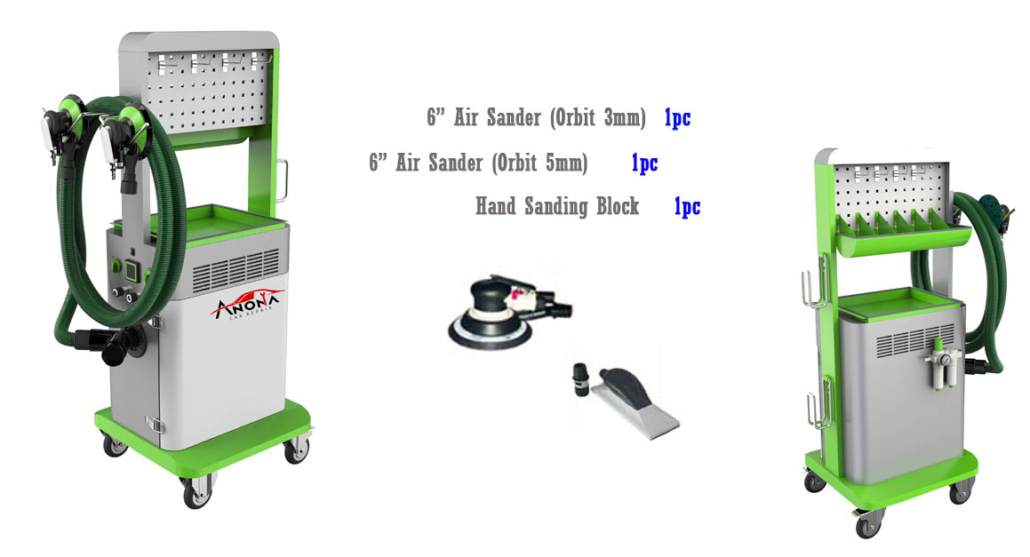

Packing List for Model AN-LY1
| 6’’ Air SanderOrbit 3mm | 6’’ Air SanderOrbit 5mm | Hand Sanding Block | Dust Hose | Dust Hose for Hand Sanding Block | Y-Joint Hose Connection | Oil-Water Separator | |
 |
 |
 |
 |
 |
 |
 |
|
| 1 pc | 1 pc | 1 pc | 1 pc | 1 pc | 1 pc | 1 pc |
